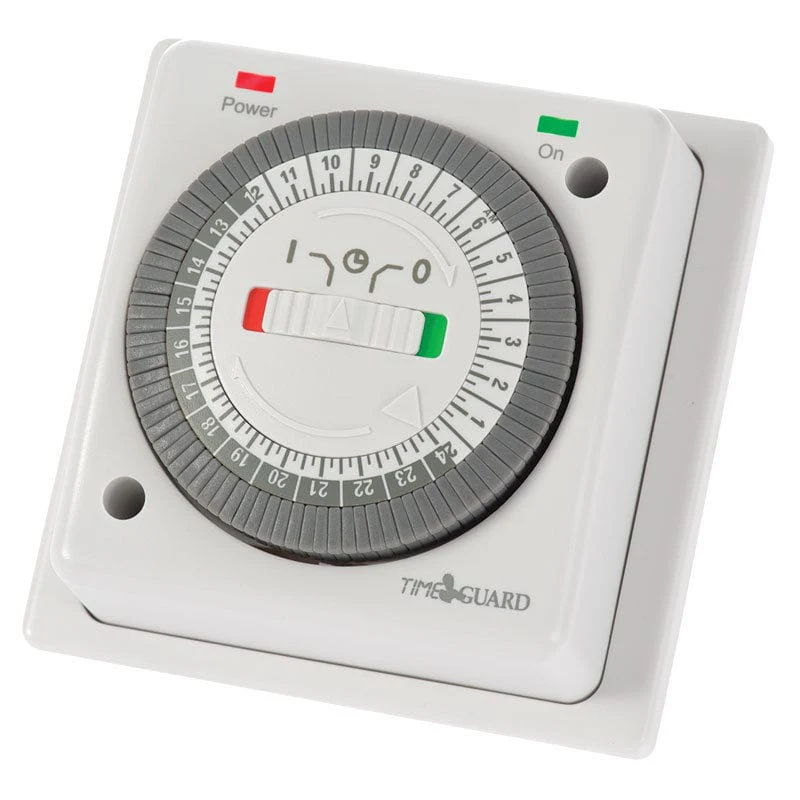

Timeguard 24hr 16A Immersion Heater Timeswitch - NTT01 - Return Unit

Introducing the New range of Compact Timeswitches from Timeguard.

Features:

• 16(6)A load rating
• 96 quick-set segments for up to 48 ON/48 OFF programmes
• Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing
• Special ‘Traffic Light’ slider switch for easy ON (green), Auto (green & red) and OFF (red) mode indication
• Switches ON and OFF at preset times
• Easy to use captive segment dial
• Permanent ON/OFF control
• Fits a standard flush or surface mount box min 32mm deep

Specifications:

• Timer Mode: 24 Hour
• Setting Type: Segment
• Switch Rating 230V AC: 16A Resistive (3.68kW), Inductive 6A
• Stand-alone LED Rating: 100W
• Operating Temperature: 0°C to +40°C
• Cable Connection: 1.5 – 2.5mm2 Flexible Cable
• EC Directives: Conforms to Latest Directives
• Dimensions: Height: 80mm x Width: 75mm x Depth: 62mm

Criteria

• Warranty: 3 Years
• Voltage: 230V AC
• Width: 75
• Height: 80
• Manufacturer Code: NTT01
• Barcode: 5012483012291
