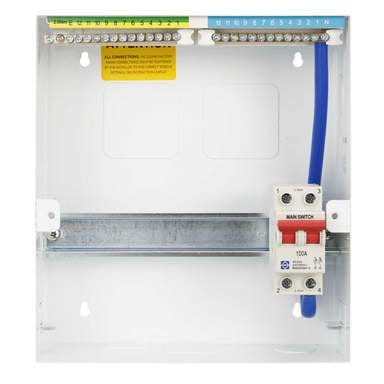

Lewden 8 + 1 Way 100A Isolator Incomer Metal Clad Consumer Unit - PRO-MX10M

Lewden 8 Way 100A RCBO Pro Main Switch Consumer Unit  - PRO-MX10M

A comprehensive consumer unit range comprising a 100A double pole main switch with overload and residual current protection provided on each individual final circuit by RCBOs.

Product Overview:

• 100A mains switch & distribution bus bar supplied
• Overcurrent and 30mA earth leakage fault protection
• Class A residual current protection
• 6kA short circuit breaking capacity - Energy limiting class 3
• B or C curve overcurrent trip options
• Fully interchangeable switched an un-switched neutral pole RCBO options
• Ratings from 6A to 50A
• IP2XC Rating
• Manufacturing Material: Steel
• Rated Operating Voltage: 230V
• Ways: 8 + 1 (1 extra module for surge protection device)
• Dimensions (HWD): 266 x 244 x 106mm
