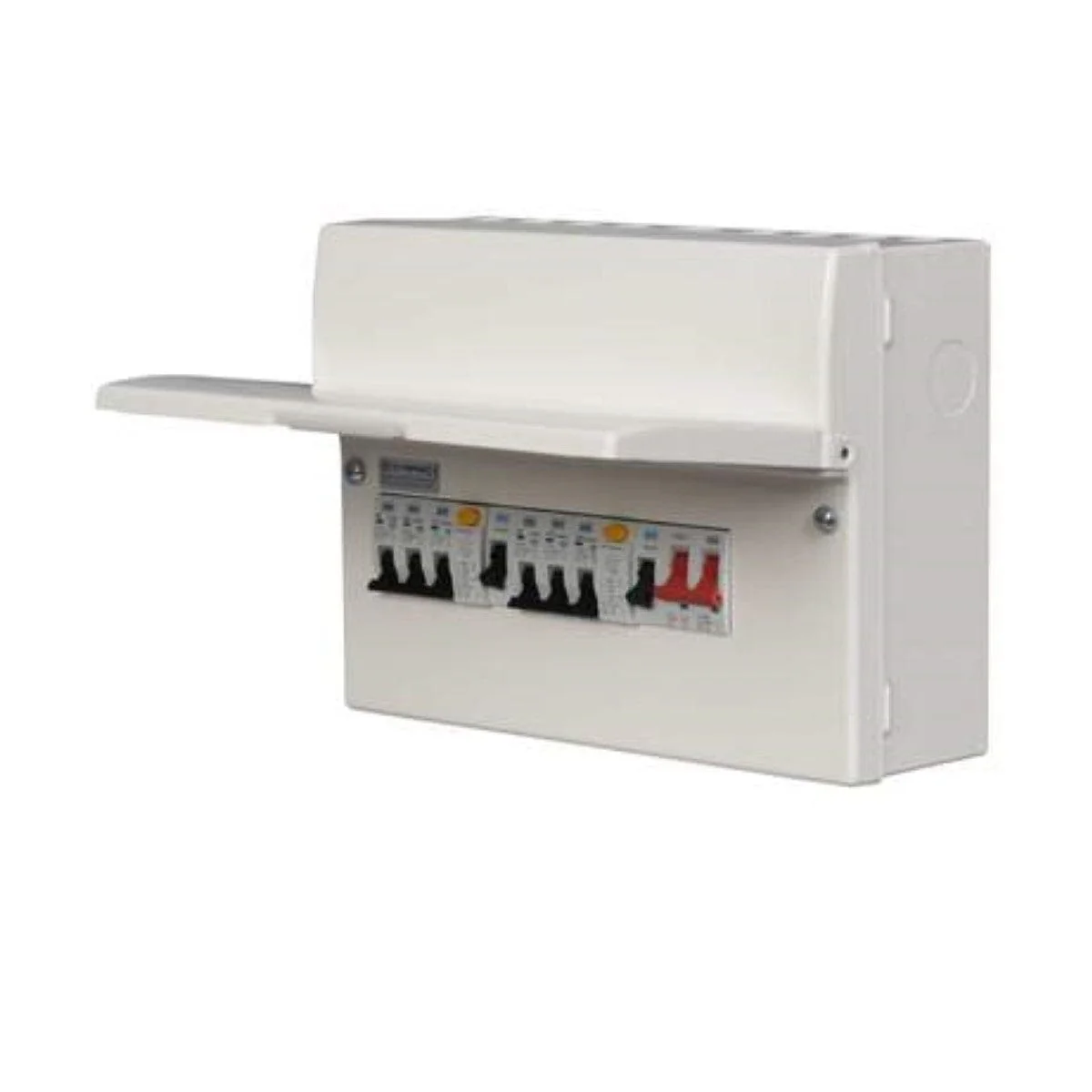

BG 6 Way With 100A Switch 2x 63A 30Ma RCD’S & 6x MCBs - CFUDP16606

BG 6 Way With 100A Switch 2X 63A 30Ma RCD’S & 6X MCBs - CFUDP16606

This BG range of consumer units offer a flexible solution for the 18th Edition Wiring Regulation BS7671. Available in a range of sizes from 6 way to 16, these consumer units will suit most applications. Each unit has an integrated spirit level aiding installation. Supplied with a 100A main switch and 2 x 63A RCDs. Each unit comes with busbar, label sheet, 2 cover blanks and instructions. These units are fully populated with MCBs. The terminal and busbar design provide maximum flexibility for combination of protected or unprotected circuits.

Product Overview:

• Modules: 12
• Switch: 4
• IP Rating: IP2XC
• Installation: Indoor
• Material: Steel
• Finish: White Gloss
• UV Stability: Yes
• Operating Voltage: 230V AC 50Hz
• Short Current Withstand: 16kA rms
• Main Switch Terminal: 35mm² Capacity
• Main Switch Torque: 2.5 Nm
• RCD Terminal: 35mm² Capacity
• RCD Torque: 63A: 2.5Nm;
